The Inspector Panel

Where the Inspector sits in Edit Mode, how it tracks selection across the Hierarchy, viewport and asset explorer, and its own resize handle.

On this page8 sections

The Inspector is the right-hand column of Edit Mode (<div className="em-side em-side-right"> → <Panel headerText="Inspector" collapsible class="em-panel"> in TableEditModeShell.tsx). This page is about the region: where it sits, what drives what it shows, and its resize handle. The fields it draws, section by section, are a separate reference — The Inspector is the map for that, with one page per section and per node kind.

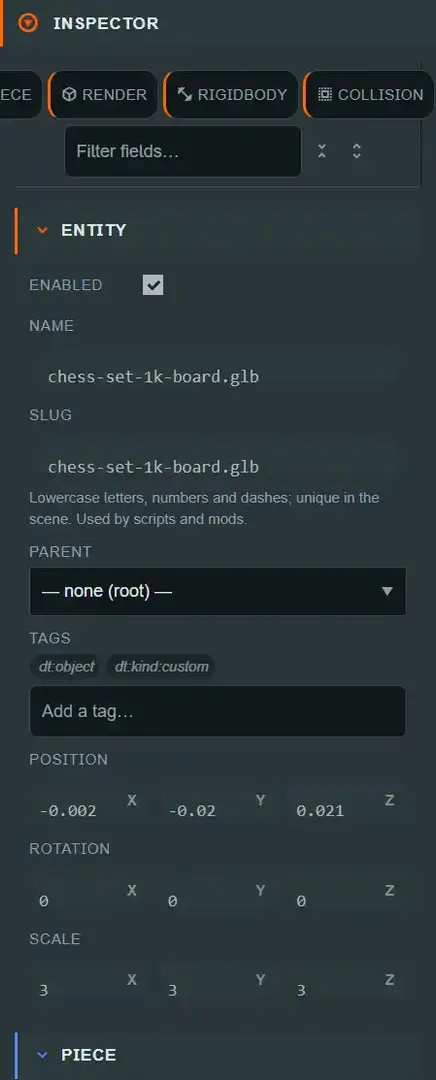

The Inspector column showing the ENTITY and PIECE sections for a selected custom piece (open full size)

What it shows: whatever is selected, and only that#

The panel body renders exactly one thing at a time — the fields for whatever selectedNode currently is. There is no default content and no "nothing selected" placeholder beyond a prompt (Select an item in the hierarchy.); the Inspector never shows two selections' fields side by side, and it never shows stale fields for something you have since deselected.

Selection can come from any of three places, and all three land in the same selectedNode state, so the Inspector updates identically regardless of where the click happened:

  • A row in the Hierarchy.
  • A tile in the asset explorer (a texture or a material — clicking a model, script or deck tile opens it as a tab instead of selecting it here).
  • An entity clicked, or a group box-selected, directly on the stage, which also mirrors the selection back into the Hierarchy.

Multi-select layers on top, not instead#

Selecting more than one entity (Ctrl/Cmd+click or Shift+click in the Hierarchy, or Ctrl/Cmd+click or a dragged box on the stage) does not replace the Inspector's normal content — the primary selection still renders its usual sections, and a SELECTION (N) panel is appended below them. That panel carries the bulk actions and the Scale gizmo mode for multi-entity scale drags. See Multi-select for what it can do.

Field documentation: hover the label#

Every field's explanation lives in a hover card, not in the panel. Point at (or Tab to) a field's label and a card opens beside the Inspector with what the setting does, its range, and whatever is not obvious about it. A section whose purpose needs a sentence carries a small ? beside its title that opens the same card, and so does a row of controls with no label of its own. The same is true in every item editor's sidebar (Model, Texture, Material, Deck, Audio …).

What stays in the panel is only what describes the current state: a count, a computed readout, a warning about the values you have entered, an empty-state line.

Dragging a number#

Every numeric field has a scrub handle on its right edge: press on it and drag left or right to change the value, or use ↑ / ↓ with the field focused (Shift for a finer step). A field measured in length steps by a round number in your display unit — an inch, 20 mm — unless the field declares a step of its own.

The resize separator#

A drag handle (role="separator", labeled Resize inspector panel) sits on the Inspector's leading edge, between it and the stage — dragging left grows the panel. It shares the same pointer-capture mechanism, clamped range (200–520 px) and per-user localStorage persistence as the other two panel separators; the full mechanics are documented once, on the viewport's panel-layout section, rather than repeated here.

The handle — and the whole three-column resizable layout — only renders at a window width of 980 px or more; narrower windows fall back to the stylesheet's responsive layout.

Where the field reference lives#

This page stops here on purpose. What each section is, which are Engine components versus Platform panels, and every field's type/range/default/runtime-effect is The Inspector and the pages linked from its node-kind table — entity, piece, render, rigidbody, collision, light, camera, script, platform-panels and materials-and-textures.

What the Inspector panel itself writes#

Control Written where
Selecting something Nothing — selectedNode is view state
Any field inside a section Whatever that field documents on its own page
Resize separator localStorage only

See also#

  • The Inspector — the field-by-field map, and the Engine-vs-Platform accent-color distinction.
  • The Hierarchy Panel — the most common way to change the selection.
  • The Viewport — the stage selection path and the shared panel-resize mechanics.
